Foxwell NT530 Plus Registration |
Foxwell NT530 Plus RegistrationThe Foxwell NT530 Plus is Wi-Fi equipped,
and can be registered & updated without needing a PC.
Unsure how to set it up? Follow this guide... To install software updates you'll need access to a Wi-Fi network with an internet connection. To register you will also need a smartphone / tablet, and access to your email. You firstly need to connect to a Wi-Fi network, so you can register and update the tool. Connect the tool to a PC or USB charger, with the included USB-C cable, to power it up. ![]()
1. Select Settings from the Main Menu
![]()
2. Select WiFi
![]()
3. Select your Wi-Fi network
![]()
4. Press F2 to open the keyboard
![]()
5. Enter your Wi-Fi password, then press F3 to connect
![]()
6. Once connected successfully...
![]()
7. ...a QR code should appear. (If not, return to the Main Menu and select Update)
Scan the QR code with the camera (or a barcode scanner app) on your smartphone / tablet ![]()

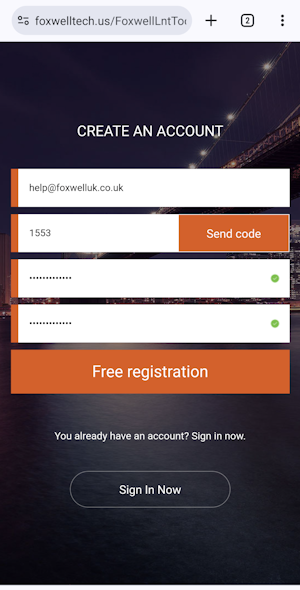

8. This should take you to the Foxwell "Create an Account screen".
- If you already have a Foxwell account, click Sign In Now at the bottom of the page - If not, fill in your email address and press Send code ![]()
9. Check your email - Foxwell will email you a 4-digit confirmation code
Enter that code, and your choice of password, then tap Free registration ![]()
10. You will be shown a vehicle manufacturer selection page.
Your selection on this page confirms the single-make license included with the tool purchase It is important that you choose this correctly. If you select a different make at this point, the manufacturer software we pre-installed will be permanently removed ![]()
11. Select the manufacturer software you require
You will be prompted to confirm your selection. Check it, and tap Submit ![]()
12. You should now see a page titled 'Product Registration', with the tool Serial Number displayed
If the Serial Number is correct, tap Submit ![]()
13. You should see a confirmation message, such as NT530Plus: activation successful
The phone / tablet part of the registration process is now complete Return to the tool ![]()
14. The tool should still be displaying the QR code
Press the F1 button to confirm registration has been completed ![]()
15. You should now see the Update screen
(To access this in future, select Update from the Main Menu) All available updates should be pre-selected. (Press F1 to Select All if not) ![]()
16. Press F3 (Update Selection)
Updates will now download & install automatically ![]()
17. A confirmation will be shown when done
You should now be up-to-date |
|
